Cathodic Protection Controllers – JA Electronics Omega II™

The Omega II cathodic protection controllers improve the quality of your impressed current cathodic protection systems by providing an extremely low ripple DC output.
In the images below, notice that the unfiltered rectifier system AC component output measures over 8.8v RMS. With the Omega II Controller, it measures less than 0.1v.

Standard Silicon Full-Wave bridge

Omega II Cathodic Protection Controllers - Waveform

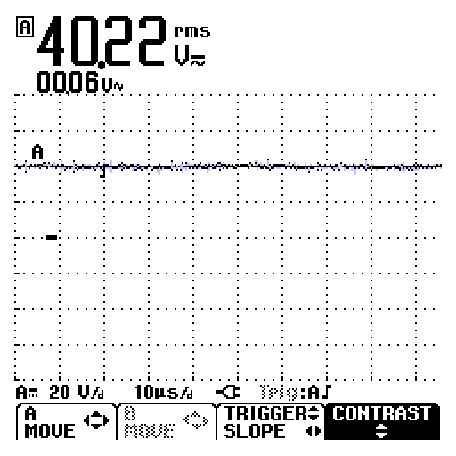

Omega II Bridge/Controller Waveform

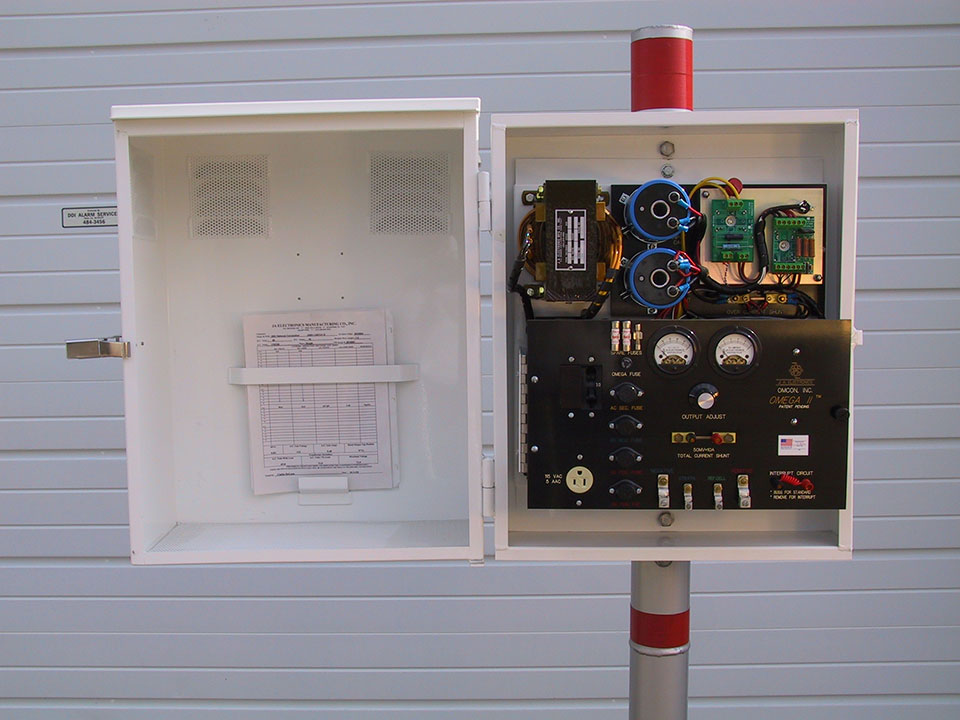

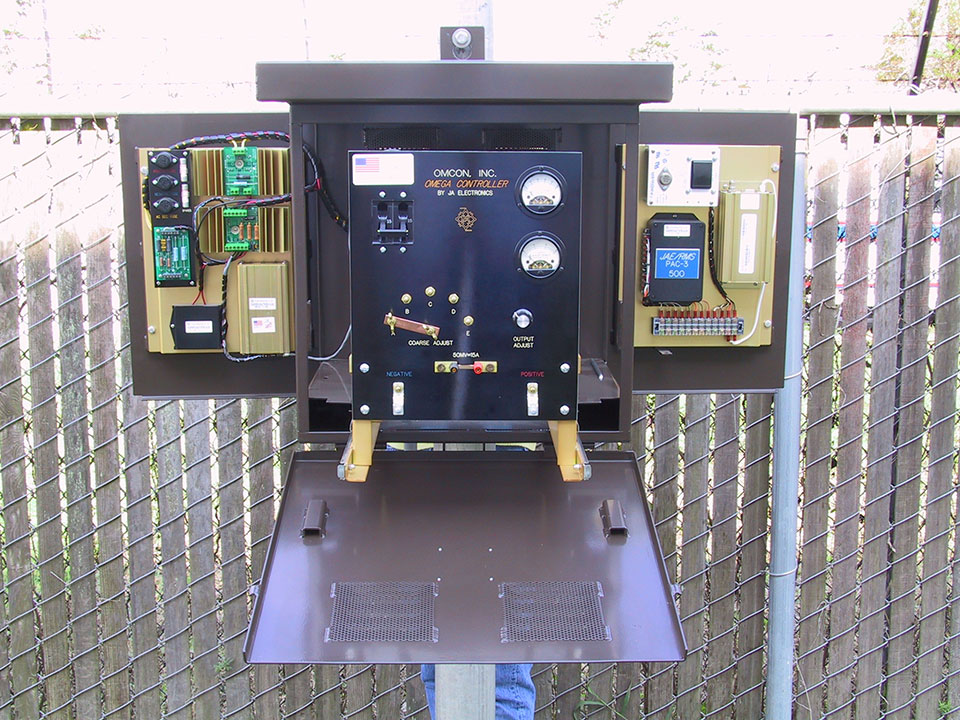

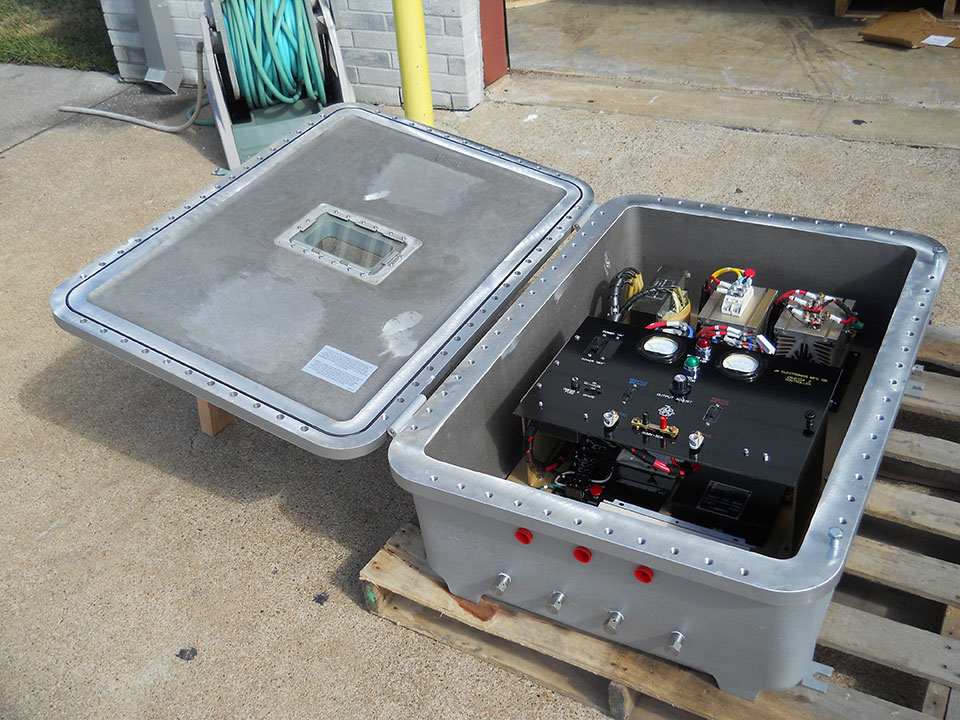

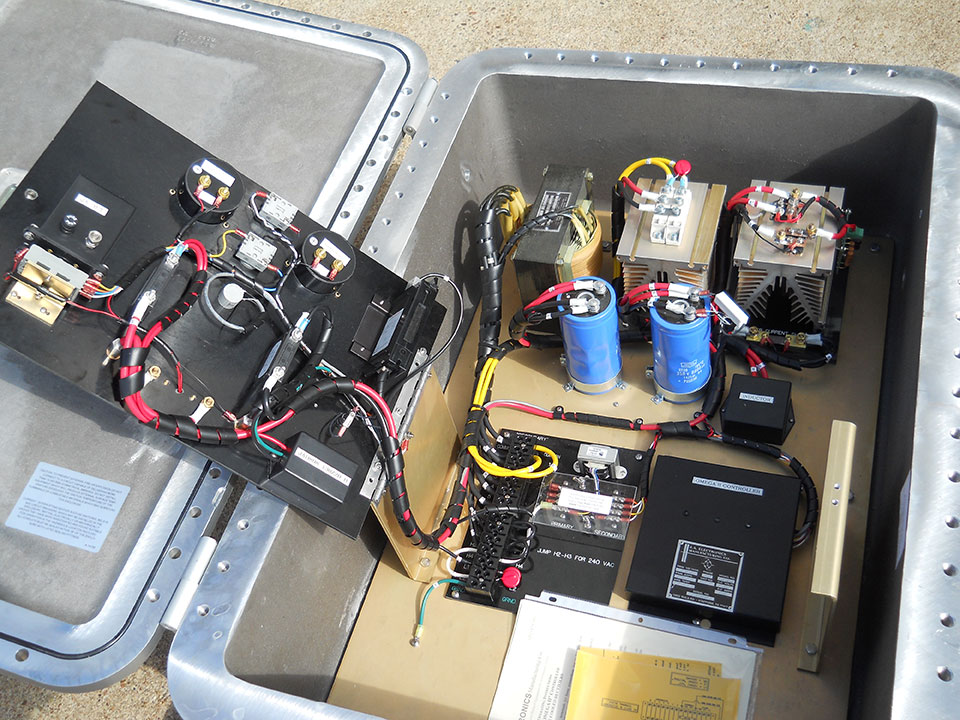

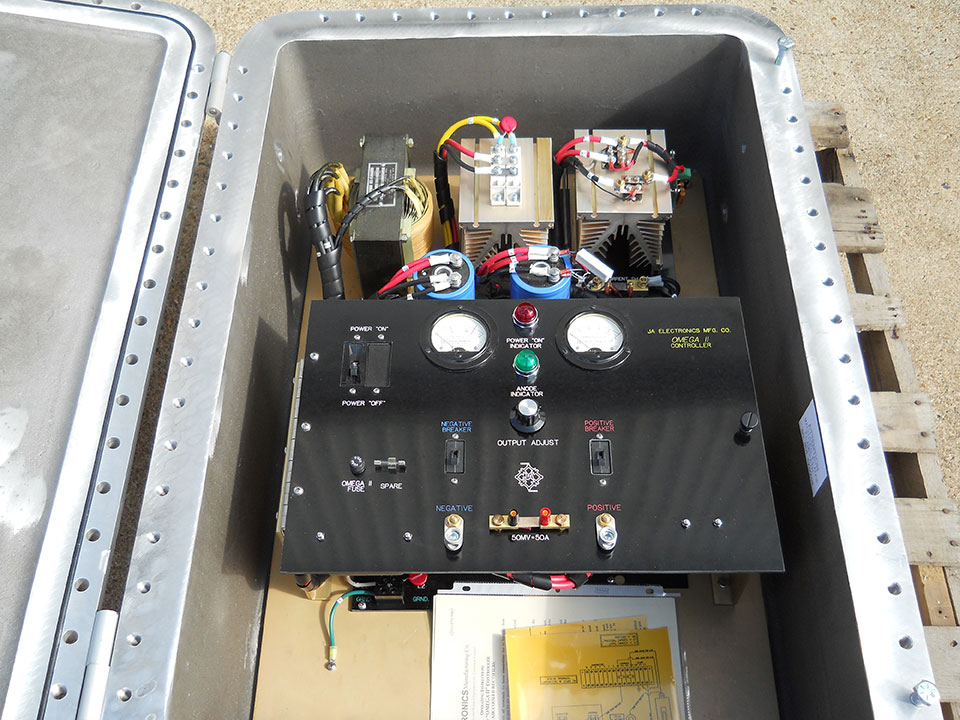

The Omega II cathodic protection controller can be installed in new cathodic protection rectifiers, or a replacement is available for existing CP rectifier units. With this technology from JA Electronics, the output power to your protected structures has 5% or less output ripple, compared to 45% ripple on standard units.

The patented Omega II technology has been proven in industrial drives, UPS Systems, and other critical reliability applications. Today it is installed in all JA Electronics solar-powered impressed current cathodic protection systems. And you can put it to work in your corrosion prevention system.

Other Standard Features

  • 5 – 100% DC output adjustment capabilities using dial potentiometer
  • Easy to install, operate, and maintain
  • Compact design, with dial adjust knob
  • Constant voltage mode operation
  • Current limiting and over-current protection through “fold-back” voltage
  • Controls and regulates the DC output, rather than the AC input of the transformer/rectifier
  • No decrease in rectifier efficiency on the low end output
  • Provisions for remote monitoring and remote control
  • Automatic shutdown under short-circuit conditions
  • Available in DC ratings of 25 amps and 50 amps

Have questions or need a quote for cathodic protection controllers?

Learn more about impressed current cathodic protection systems from our partner MATCOR.
