Custom Designed Cathodic Protection Rectifiers and Equipment

JA Electronics builds custom designed cathodic protection rectifiers and equipment to your exact specifications. This includes portable test rectifiers, service station rectifiers, controllers, and more…

Portable Test Rectifiers for Cathodic Protection

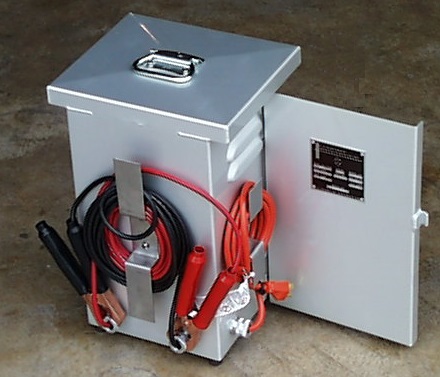

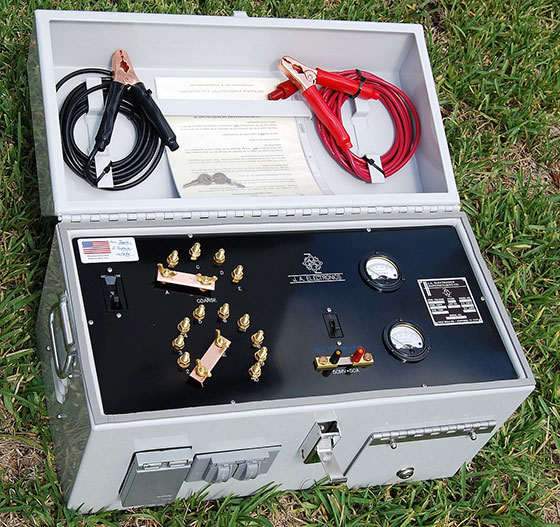

Portable Test Rectifier for Cathodic Protection

Quickly and efficiently determine your cathodic protection rectifier and groundbed needs with a portable test rectifier from JA Electronics.

  • Powered by single-phase AC power from mains, generator or inverter
  • Enclosed in a dry powder coated aluminum enclosure
  • Enables accurate design of your cathodic protection system the first time, saving you time and money
  • Supports troubleshooting and testing of existing groundbeds, casings, and interference crossings
  • Connects to your cathodic protection project groundbed with DC clamp leads

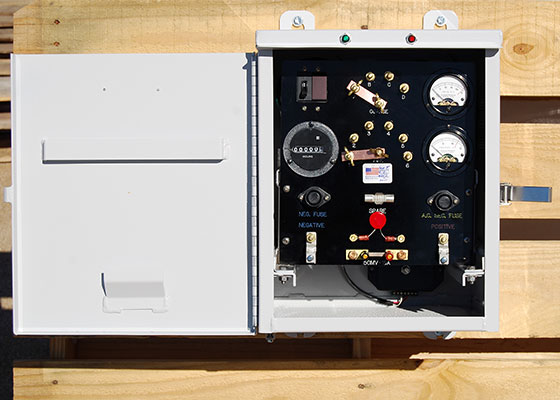

Service Station Rectifiers for Cathodic Protection

Designed and manufactured especially for cathodic protection of storage tanks and underground piping, the service station line of air-cooled cathodic protection system rectifiers delivers JA Electronics’ signature quality and value.

Service Station Rectifier Standard Features

  • Convection air cooled
  • 0.125 ga. TGIC dry powder coated aluminum enclosure
  • Wall mounted
  • Fully engraved phenolic panel
  • Fully magnetic circuit breaker
  • Heavy duty transformer with 20% over design capacity
  • 24 output settings (4 coarse and 6 fine taps)
  • Elapsed time hour meter
  • Silicon modular diode rectifier bridge with AC and DC zinc oxide varistor (ZNR) surge protection
  • AC and DC failure light
  • Separate DC volt and amp continuous read meters
  • AC Secondary(1), DC negative, and spare high speed fuses

Optional Features

  • Thermal circuit breaker
  • Auto-potential or manual operation mode
  • Red/green indicator light harness and controller
  • Combination DC volt/amp meter

Omega II Cathodic Protection Controllers

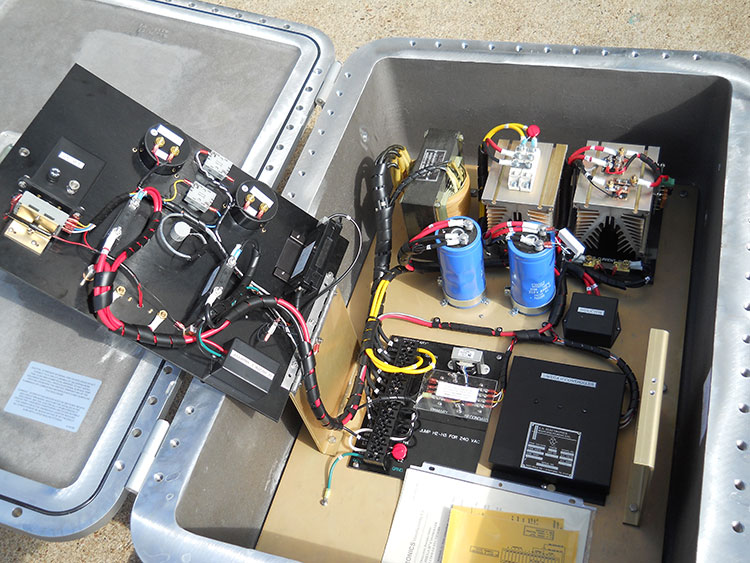

Omega II Cathodic Protection Controller

The JA Electronics Omega II cathodic protection controller—available with AC power or for solar powered cathodic protection systems—provides an extremely low ripple DC output, to improve the quality of your impressed current cathodic protection system.

With this technology from JA Electronics, the output power to your protected structures has 5% or less output ripple, compared to 45% ripple on standard units, allowing for maximum design efficiency.

Install in new cathodic protection rectifiers, or in existing rectifier units with a replacement kit.

Learn More about JA Electronics’ Omega II Cathodic Protection Controllers

Custom Cathodic Protection Rectifier Designs

Custom Designed Cathodic Protection Rectifiers

JA Electronics designs and builds custom cathodic protection solutions including:

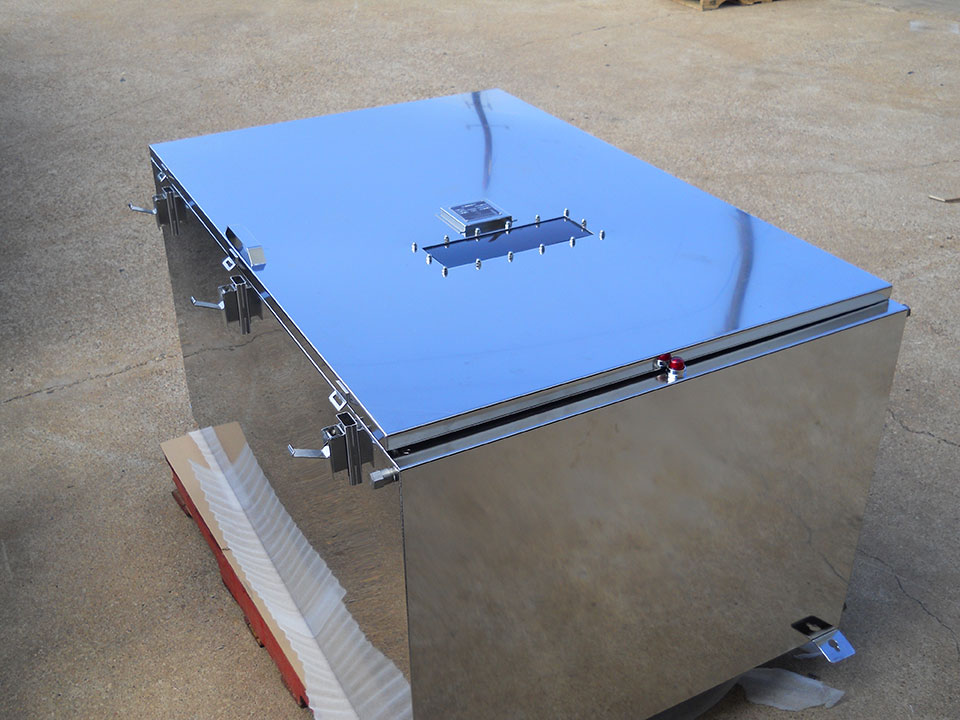

  • Custom enclosures

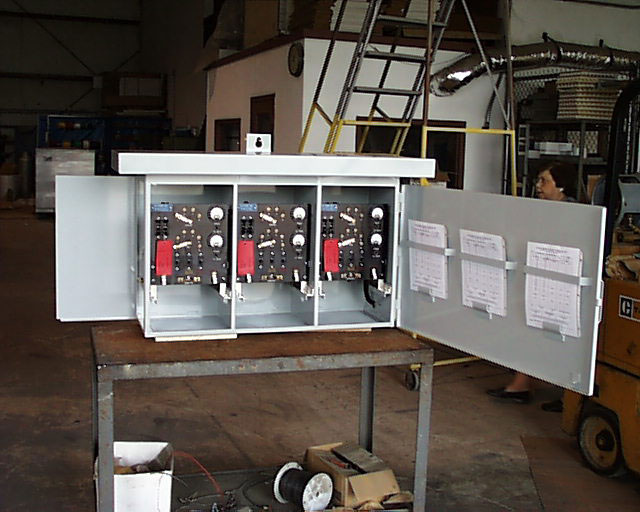

  • Multiple rectifier units per cabinet
  • Special mounting or enclosure needs
  • Sun shields fitted to oil-cooled rectifier tanks

Reverse Current Switches

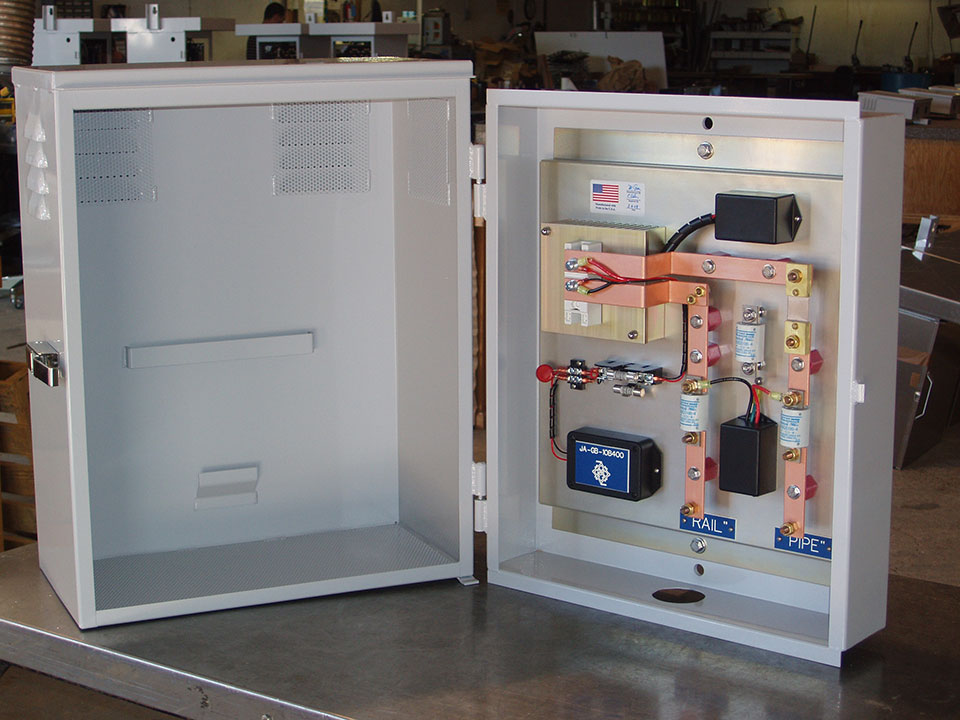

The reverse current switch is a separately enclosed device, built to JA Electronics industry-leading quality standards. It provides your pipeline with a one-way DC current bond that enables your cathodic protection system to do its job. At the same, it protects the CP system from occasional high- or medium-voltage induced currents in the reverse direction.

Custom Designed Cathodic Protection Rectifiers and Equipment Image Gallery

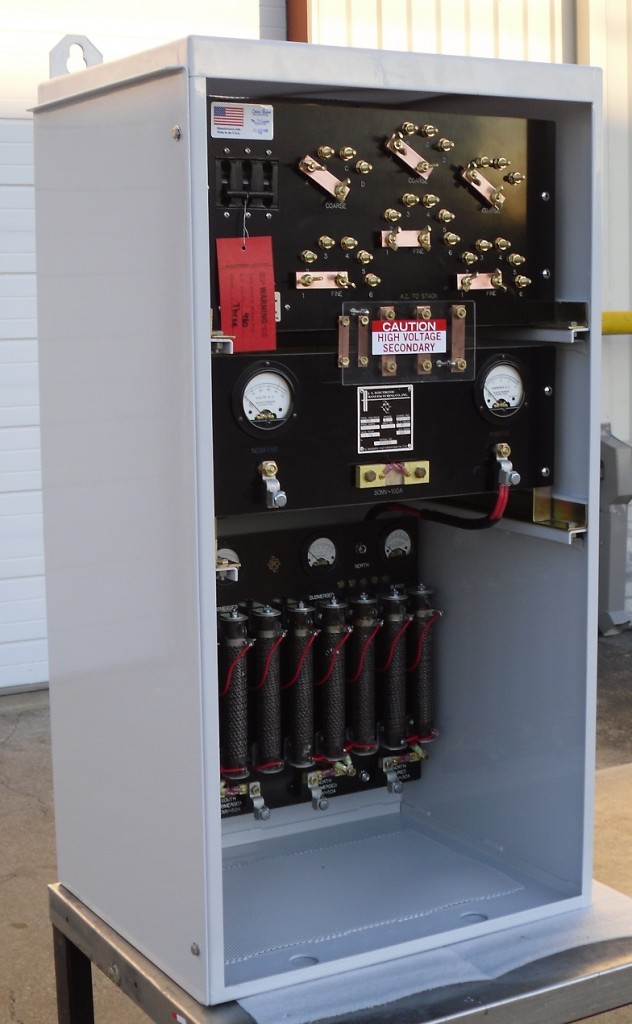

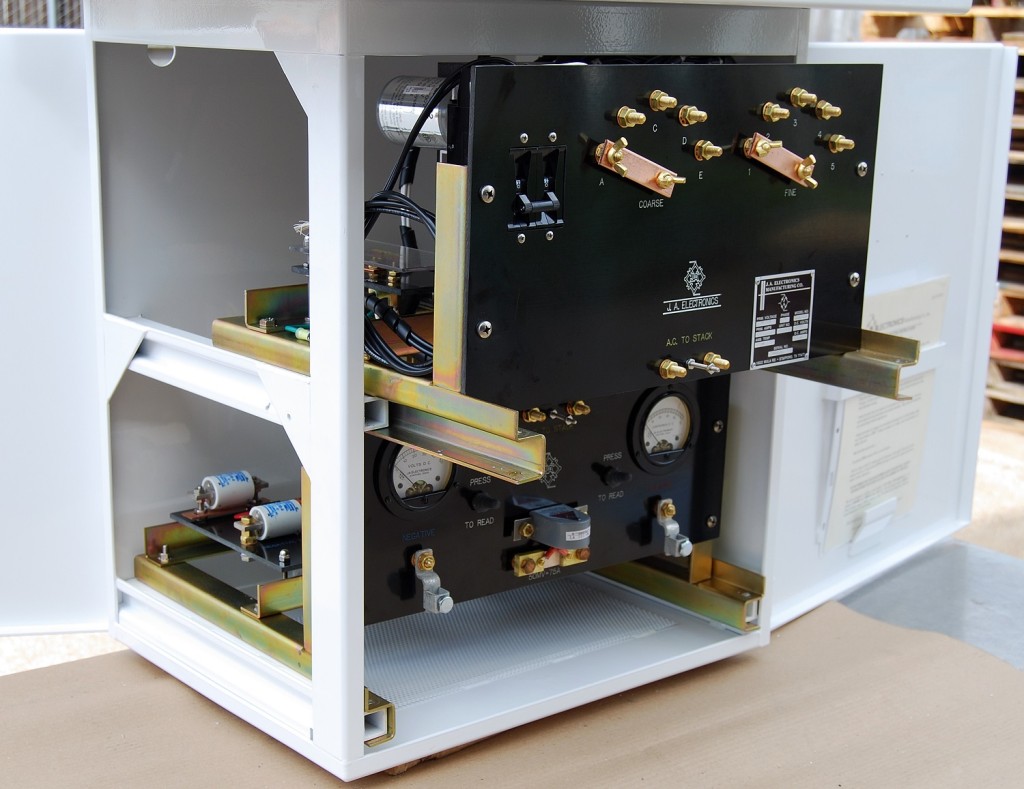

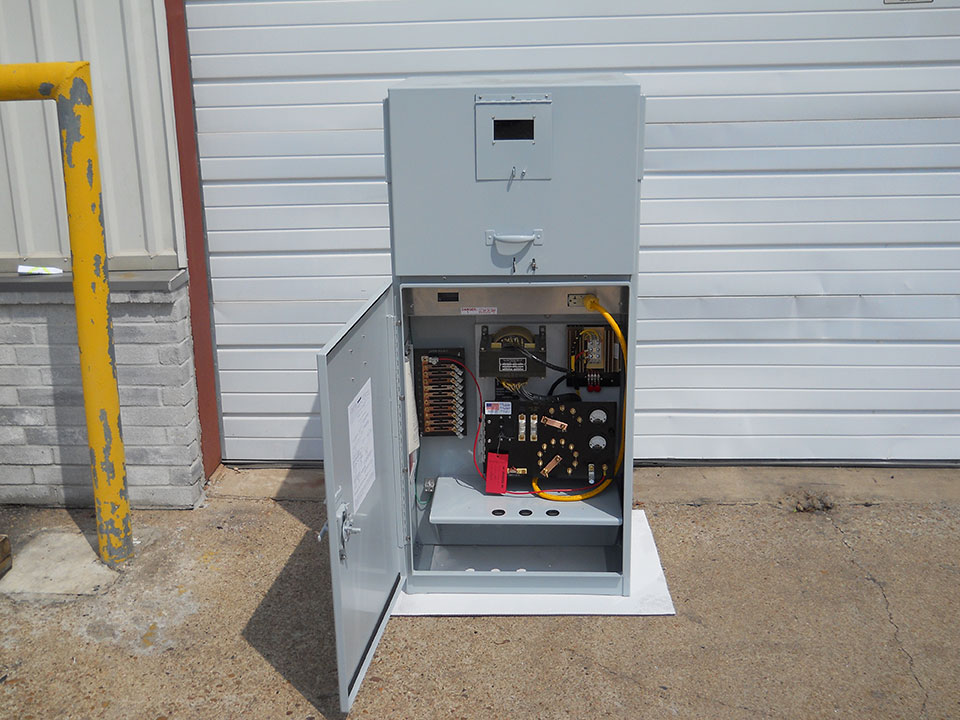

Images, L to R: custom finished cathodic protection rectifier enclosure, portable test rectifier, custom enclosure, cathodic protection rectifier and distribution panel, custom designed rectifier with service rails

Have questions or need a quote for custom designed cathodic protection rectifiers or equipment?
